مرحلات طاقة، أكثر من ٢ أمبير
| الصورة: | رقم جزء الشركة المصنعة | حالة المخزون | السعر | الكمية | ورقة البيانات | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J107F1CS1212VDC.36RELAY GEN PURPOSE SPDT 12A 12V CIT Relay and Switch |
2,412 | - |
RFQ |
ورقة البيانات |
Tube | J107F | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J107F1CS1224VDC.36RELAY GEN PURPOSE SPDT 12A 24V CIT Relay and Switch |
2,105 | - |
RFQ |
ورقة البيانات |
Tube | J107F | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J114AF2CS24VDC.53RELAY GEN PURPOSE DPDT 8A 24V CIT Relay and Switch |
2,430 | - |
RFQ |
ورقة البيانات |
Tube | J114AF | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 380VAC, 110VDC - Max | 22.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
J115F11A12VDCS6.9RELAY GEN PURPOSE SPST 40A 12V CIT Relay and Switch |
2,007 | - |
RFQ |
ورقة البيانات |
Tube | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J115F11A24VDCS6.9RELAY GEN PURPOSE SPST 40A 24V CIT Relay and Switch |
3,948 | - |
RFQ |
ورقة البيانات |
Tube | J115F1 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J115F21C12VDCS.9RELAY GEN PURPOSE SPDT 40A 12V CIT Relay and Switch |
2,941 | - |
RFQ |
ورقة البيانات |
Tube | J115F2 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J115F11CH12VDCS61.5RELAY GEN PURPOSE SPDT 50A 12V CIT Relay and Switch |
3,741 | - |
RFQ |
ورقة البيانات |
Tube | J115F | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 125 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J1021CS35VDC.20RELAY GEN PURPOSE SPDT 3A 5V CIT Relay and Switch |
2,293 | - |
RFQ |
ورقة البيانات |
Tube | J102 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
J1021CS312VDC.20RELAY GEN PURPOSE SPDT 3A 12V CIT Relay and Switch |
2,214 | - |
RFQ |
ورقة البيانات |
Tube | J102 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
J107F1CS1212VDC.80RELAY GEN PURPOSE SPDT 12A 12V CIT Relay and Switch |
2,192 | - |
RFQ |
ورقة البيانات |
Tube | J107F | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J1001AS5VDC.20RELAY GEN PURPOSE SPST 10A 5V CIT Relay and Switch |
2,317 | - |
RFQ |
ورقة البيانات |
Tray | J100 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
J1021CS55VDC.45RELAY GEN PURPOSE SPDT 5A 5V CIT Relay and Switch |
3,011 | - |
RFQ |
ورقة البيانات |
Tube | J102 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 5 A | 300VAC, 150VDC - Max | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
J1021AS55VDC.45RELAY GEN PURPOSE SPST 5A 5V CIT Relay and Switch |
2,102 | - |
RFQ |
ورقة البيانات |
Tube | J102 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 300VAC, 150VDC - Max | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
J107F1CS1224VDC.45RELAY GEN PURPOSE SPDT 12A 24V CIT Relay and Switch |
3,478 | - |
RFQ |
ورقة البيانات |
Tube | J107F | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
|
J107F1AS125VDC.36RELAY GEN PURPOSE SPST 12A 5V CIT Relay and Switch |
3,084 | - |
RFQ |
ورقة البيانات |
Tube | J107F | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
|
J107F1CS123VDC.36RELAY GEN PURPOSE SPDT 12A 3V CIT Relay and Switch |
2,987 | - |
RFQ |
ورقة البيانات |
Tube | J107F | Active | Through Hole | 3VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
|
J107F1CS125VDC.36RELAY GEN PURPOSE SPDT 12A 5V CIT Relay and Switch |
3,683 | - |
RFQ |
ورقة البيانات |
Tube | J107F | Active | Through Hole | 5VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|

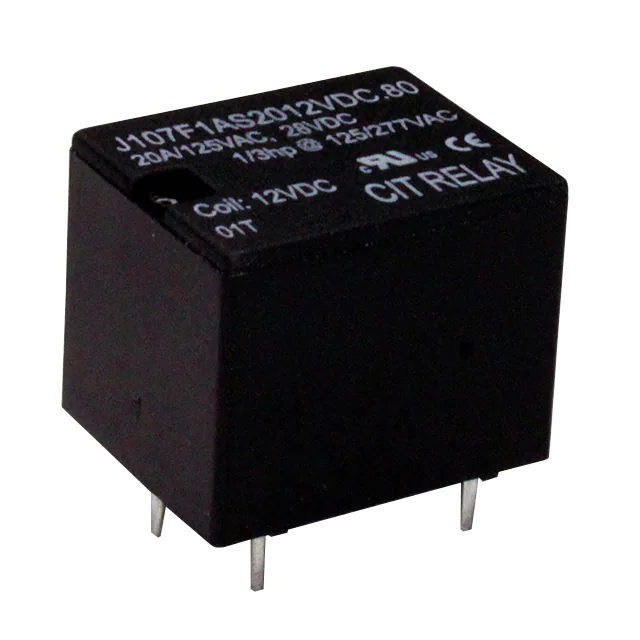

J107F1AS2012VDC.80RELAY GEN PURPOSE SPST 20A 12V CIT Relay and Switch |
3,455 | - |
RFQ |
ورقة البيانات |
Tube | J107F | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J0971CS5VDC.45RELAY GEN PURPOSE SPDT 10A 5V CIT Relay and Switch |
2,225 | - |
RFQ |
ورقة البيانات |
Tray | J097 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J0971CS24VDC.45RELAY GEN PURPOSE SPDT 10A 24V CIT Relay and Switch |
2,761 | - |
RFQ |
ورقة البيانات |
Tray | J097 | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
