المزيد من فئات المنتجات

مرحلات طاقة، أكثر من ٢ أمبير

رقم جزء الشركة المصنعة	حالة المخزون	السعر	الكمية	ورقة البيانات	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
RZ03-1C4-D024 RELAY GEN PURPOSE SPDT 16A 24V TE Connectivity Potter & Brumfield Relays	2,359	-	RFQ	ورقة البيانات	Tube	RZ, SCHRACK	Active	Through Hole	24VDC	SPDT (1 Form C)	16 A	400VAC - Max	16.7 mA	Non Latching	-	PC Pin	-	Class F	16.8 VDC	2.4 VDC	8 ms	6 ms	-40°C ~ 85°C	Silver Nickel (AgNi)

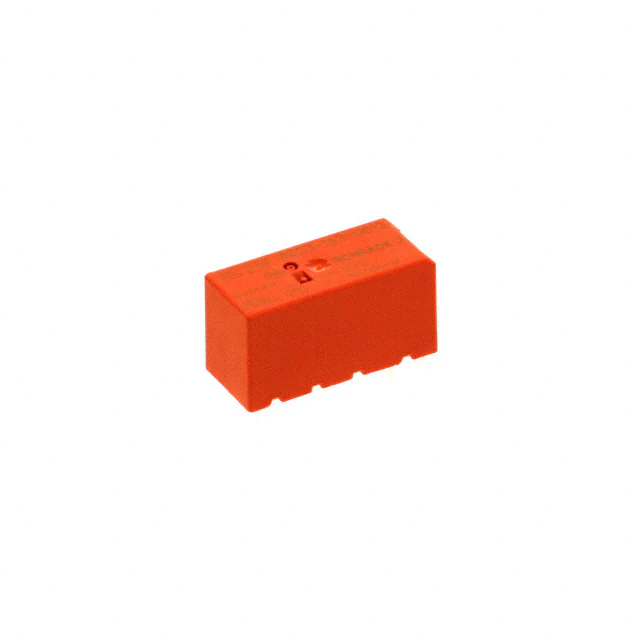

4-1415899-9 RELAY GEN PURPOSE SPST 16A 12V TE Connectivity Potter & Brumfield Relays	2,157	-	RFQ	ورقة البيانات	Bulk	RZ, SCHRACK	Active	Through Hole	12VDC	SPST-NO (1 Form A)	16 A	400VAC - Max	33.3 mA	Non Latching	-	PC Pin	-	Class F	8.4 VDC	1.2 VDC	8 ms	6 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
J114AF2CS12VDC.53 RELAY GEN PURPOSE DPDT 8A 12V CIT Relay and Switch	3,710	-	RFQ	ورقة البيانات	Tube	J114AF	Active	Through Hole	12VDC	DPDT (2 Form C)	8 A	380VAC, 110VDC - Max	44.4 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	20 ms	10 ms	-55°C ~ 105°C	Silver Tin Oxide (AgSnO)
KC-16 RELAY GEN PURPOSE SPDT 12A 26.5V TE Connectivity Aerospace, Defense and Marine	2,078	-	RFQ		Bulk	KC-16, KILOVAC	Active	Panel Mount	26.5VDC	SPDT (1 Form C)	12 A	15000VDC - Max	-	Non Latching	-	Solder Turret	-	-	16 VDC	1 VDC	15 ms	9 ms	-55°C ~ 125°C	-
3-1618276-5 RELAY GEN PURPOSE SPDT 10A 26.5V TE Connectivity Aerospace, Defense and Marine	3,261	-	RFQ		Bulk	K61, KILOVAC	Active	Panel Mount	26.5VDC	SPDT (1 Form C)	10 A	35000VDC - Max	-	Non Latching	-	Solder Turret, Wire Leads	-	-	18 VDC	1 VDC	15 ms	15 ms	-55°C ~ 85°C	-
J1021AS35VDC.20 RELAY GEN PURPOSE SPST 3A 5V CIT Relay and Switch	2,069	-	RFQ	ورقة البيانات	Tube	J102	Active	Through Hole	5VDC	SPST-NO (1 Form A)	3 A	300VAC, 150VDC - Max	40 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.75 VDC	0.5 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
J102K1CS35VDC.20 RELAY GEN PURPOSE SPDT 3A 5V CIT Relay and Switch	2,562	-	RFQ	ورقة البيانات	Tube	J102	Active	Through Hole	5VDC	SPDT (1 Form C)	3 A	300VAC, 150VDC - Max	40 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.75 VDC	0.5 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
ALQ3F24 RELAY GEN PURPOSE SPST 10A 24V Panasonic Electric Works	2,605	-	RFQ	ورقة البيانات	Box	ALQ	Active	Through Hole	24VDC	SPST-NO (1 Form A)	10 A	250VAC - Max	8.3 mA	Non Latching	-	PC Pin	-	Class F	18 VDC	1.2 VDC	20 ms	20 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
ALQ3F12 RELAY GEN PURPOSE SPST 10A 12V Panasonic Electric Works	3,339	-	RFQ	ورقة البيانات	Box	ALQ	Active	Through Hole	12VDC	SPST-NO (1 Form A)	10 A	250VAC - Max	16.7 mA	Non Latching	-	PC Pin	-	Class F	9 VDC	0.6 VDC	20 ms	20 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
ALQ306 RELAY GEN PURPOSE SPST 10A 6V Panasonic Electric Works	2,881	-	RFQ	ورقة البيانات	Box	ALQ	Active	Through Hole	6VDC	SPST-NO (1 Form A)	10 A	250VAC - Max	33.3 mA	Non Latching	-	PC Pin	-	Class B	4.5 VDC	0.3 VDC	20 ms	20 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
J109F1CS1212VDC.45 RELAY GEN PURPOSE SPDT 12A 12V CIT Relay and Switch	2,388	-	RFQ	ورقة البيانات	Tube	J109F	Active	Through Hole	12VDC	SPDT (1 Form C)	12 A	380VAC, 110VDC - Max	37.5 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	9 VDC	1.2 VDC	7 ms	4 ms	-55°C ~ 125°C	Silver Tin Oxide (AgSnO)
ALQ1F05 RELAY GEN PURPOSE SPDT 10A 5V Panasonic Electric Works	3,297	-	RFQ	ورقة البيانات	Box	ALQ	Active	Through Hole	5VDC	SPDT (1 Form C)	10 A	250VAC - Max	80 mA	Non Latching	-	PC Pin	-	Class F	3.75 VDC	0.25 VDC	20 ms	20 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
ALQ1F24 RELAY GEN PURPOSE SPDT 10A 24V Panasonic Electric Works	3,322	-	RFQ	ورقة البيانات	Box	ALQ	Active	Through Hole	24VDC	SPDT (1 Form C)	10 A	250VAC - Max	16.7 mA	Non Latching	-	PC Pin	-	Class F	18 VDC	1.2 VDC	20 ms	20 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
J123F1C12VDC.36 RELAY GEN PURPOSE SPDT 20A 12V CIT Relay and Switch	2,716	-	RFQ	ورقة البيانات	Tube	J123F	Active	Through Hole	12VDC	SPDT (1 Form C)	20 A	380VAC, 110VDC - Max	30 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	9 VDC	1.2 VDC	10 ms	5 ms	-55°C ~ 125°C	Silver Tin Oxide Indium Oxide (AgSnOInO)
G5LE-1-ASI DC5 RELAY GEN PURPOSE SPDT 10A 5V Omron Electronics Inc-EMC Div	3,614	-	RFQ	ورقة البيانات	Tray	G5LE	Active	Through Hole	5VDC	SPDT (1 Form C)	10 A	250VAC, 125VDC - Max	79.4 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	3.75 VDC	0.5 VDC	10 ms	5 ms	-25°C ~ 85°C	Silver Tin Oxide (AgSnO)
G5Q1A4EUDC12 RELAY GEN PURPOSE SPST 10A 12V Omron Electronics Inc-EMC Div	3,925	-	RFQ		Tube	G5Q-EU	Active	Through Hole	12VDC	SPST-NO (1 Form A)	10 A	277VAC, 30VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	9 VDC	0.6 VDC	10 ms	5 ms	-40°C ~ 85°C	Silver Alloy
G5Q-14 DC18 RELAY GEN PURPOSE SPDT 10A 18V Omron Electronics Inc-EMC Div	2,782	-	RFQ		Tray	G5Q	Active	Through Hole	18VDC	SPDT (1 Form C)	10 A	277VAC, 30VDC - Max	22.2 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	13.5 VDC	0.9 VDC	10 ms	5 ms	-40°C ~ 105°C	Silver Alloy
G5LE-1 DC5 RELAY GEN PURPOSE SPDT 10A 5V Omron Electronics Inc-EMC Div	2,134	-	RFQ	ورقة البيانات	Tray	G5LE	Active	Through Hole	5VDC	SPDT (1 Form C)	10 A	250VAC, 125VDC - Max	79.4 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	3.75 VDC	0.5 VDC	10 ms	5 ms	-25°C ~ 85°C	Silver Tin Oxide (AgSnO)

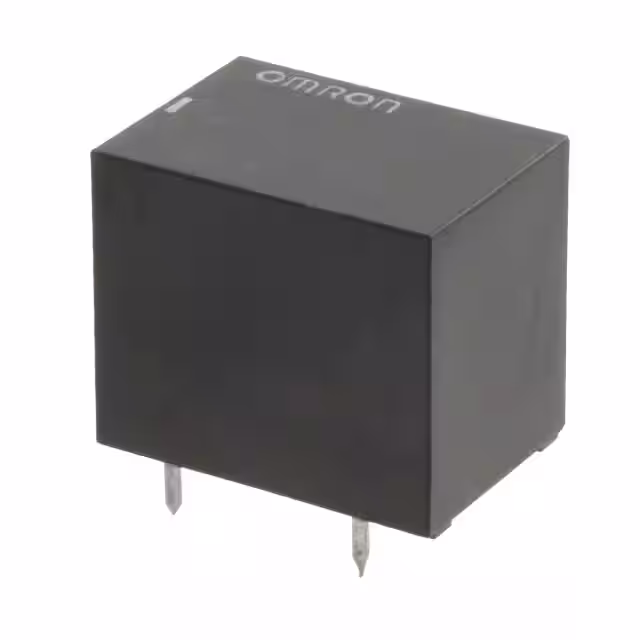

G5LE-14-CF DC12 RELAY GEN PURPOSE SPDT 10A 12V Omron Electronics Inc-EMC Div	2,325	-	RFQ	ورقة البيانات	Tray	G5LE	Active	Through Hole	12VDC	SPDT (1 Form C)	10 A	250VAC, 125VDC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	9 VDC	1.2 VDC	10 ms	5 ms	-25°C ~ 85°C	Silver Tin Oxide (AgSnO)
G5NB-1A DC5 RELAY GENERAL PURPOSE SPST 3A 5V Omron Electronics Inc-EMC Div	3,221	-	RFQ	ورقة البيانات	Bulk	G5NB	Active	Through Hole	5VDC	SPST-NO (1 Form A)	3 A	250VAC, 30VDC - Max	40 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	-	3.75 VDC	0.5 VDC	10 ms	10 ms	-40°C ~ 70°C	-
